no.2)H5CN-XBN AC100-240 time relays

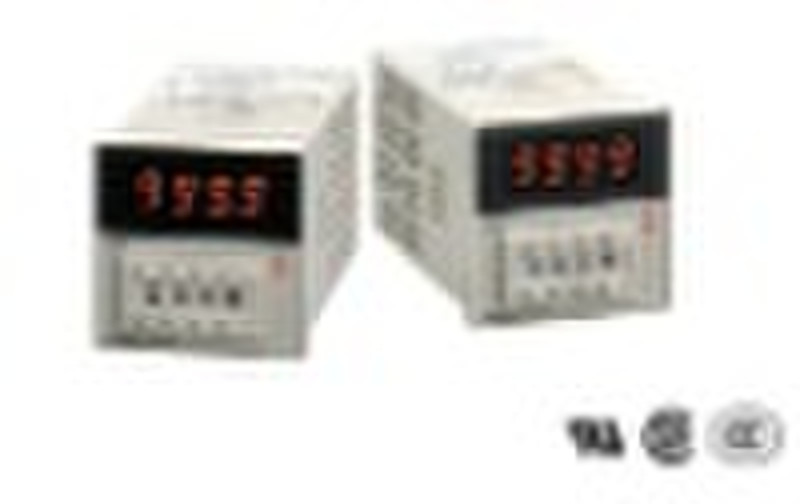

H5CN-XBN AC100-240 time relays specifications datasheet RatingsRated supply voltage100 to 240 VAC 50/60HzOperating voltage range85% to 110% of rated supply voltagePower consumptionApprox. 12VA , 2.5 W (at 50Hz, 240 VAC)Time ranges (Number of ranges)1Time ranges0.1 s to 999.9 sSelect methodThumbwheel SwitchInput signalsReset,GateInput methodNo-voltage inputMinimum input signal width20 ms (reset,Gate)Output modesN (Power ON delay)Control output (Contact output)Type: SPDT Switching capacities (Resistive load): 3 A at 250 VAC/3 A at 24 VDC Switching capacities (Inductive load): 1 A 250 VAC(cos phi=0.4)/ 2.5 A 24 VDC( L/R=7 ms) Minimum applicable load: 10 mA at 5 VDC (failure level: P)Reset systemPower reset, External resetPower resetMinimum power-opening time: 0.5 sTimer modeUP display timer (increments form 0 to the set time)Display method7-segment LEDsDigit4 digitsCharacter heightPresent value: 8 mm (Red) Zero suppression: Not equippedAmbient temperatureOperating: -10 CEL to 55 CEL (with no icing or condensation) Storage: -25 CEL to 65 CEL (with no icing or condensation)Ambient humidityOperating: 35% to 85% Storage: 35% to 85%CharacteristicsTotal accuracyAccuracy of operating time setting error temperature influences and voltage influences(including the rise time of the power source and the operating times of the internal and output circuits.) Power-ON start: 0.01% 50 ms max. Rated against set value Reset start: 0.005% 30 ms max. Rated against set value The values are based on the set value.Insulation resistance100 MOhm min. (at 500 VDC) between current carrying metal parts and exposed non-current carrying metal parts, between operating power circuit and control output circuitDielectric strengthbetween current-carrying terminals and exposed non-curernt-carrying metal parts: 2000 VAC 50/60 Hz for 1 min between operating power circuit and control output circuit: 2000 VAC 50/60 Hz for 1 minImpulse withstand voltagebetween power terminals: 6 kV between current-carrying terminals and exposed non-curernt-carrying metal parts: 6 kVNoise immunityBetween power terminals: +-2 kV Square-wave noise by noise simulator (square-wave noise by noise simulator (pulse width: 100 ns/1 us 1-ns rise))Static immunityMulfunction: 8 kVVibration resistance (Destruction)10 to 55 Hz 0.75 mm single amplitude each in 3 directions for 2 hoursVibration resistance (Malfunction)10 to 55 Hz 0.5 mm single amplitude each in 3 directions for 10minShock resistance (Destruction)300 m/s2 3 times each in 6 directions(3 axes)Shock resistance (Malfunction)100 m/s2 3 times each in 6 directions(3 axes)Mechanical Life expectancy (relay output)10000000 operations min. (under no load at 1800 operations/h)Electrical Life expectancy (relay output)100000 operations min.(3 A at 250 VAC resistive load at 1800 operations/h)Degree of protectionIEC60529(JEM): Panel surface: IP30Applicable standard (UL)Standard No.: UL508 File number: E41515Applicable standard (CSA)Standard No.: CSA C22.2 No.14 File number: LR22310Mounting methodFlush mounting / Surface mountingexternal connection method8-pin round socketCase colorLight gray (Munsell 5Y7/1)WeightApprox. 200 g
